Standard Product

OVERVIEW

Without or with only slight changes on the hardware, the Standard Products can adopt various detection algorithms as sub-models to adapt for different functions.

Blind Spot & Rear View VRU Detection

Pedestrians and cyclists (with normal angle camera or Bird-Eye-View camera)

Forward Collision Warning & Side Blind Spot Detection

Vehicle Detection (with normal angle camera or Bird-Eye-View camera)

Lane Departure Warning

Lane Detection (with normal angle camera or Bird-Eye-View camera)

Driver-Status-Monitoring, Distracting-Fatigue Detection

Driver's face, eyes, mouth, safety belt, and mobile phone

Drivable Area Segmentation

with normal angle camera or Bird-Eye-View camera

Semaphore Checking

Train Driver's hands and arms

Public Service,Industrial, and Agricultural application

Pedestrian in complex environments

Special application

Pedestrian in forests and jungles

● Level1 & Level2 Driving/Operating Assistant System
● Applied on big machines and vehicles
● Systems consist of the host, cameras, optional Radar and LiDAR, and peripherals

● To detect Vulnerable Road Users (VRU), vehicles, lanes, and other potential risks in your blind spots and around your car. Triggers the alert and/or stops machine
● To assist the drivers, but not replace them
● OTA upgrade, remote maintenance, remote setting, report and video uploaded to the cloud, camera live view

Rigorous Development Verification Tests Guarantee Excellent Working Performance In Various Operating Environments

THE MAIN UNIT

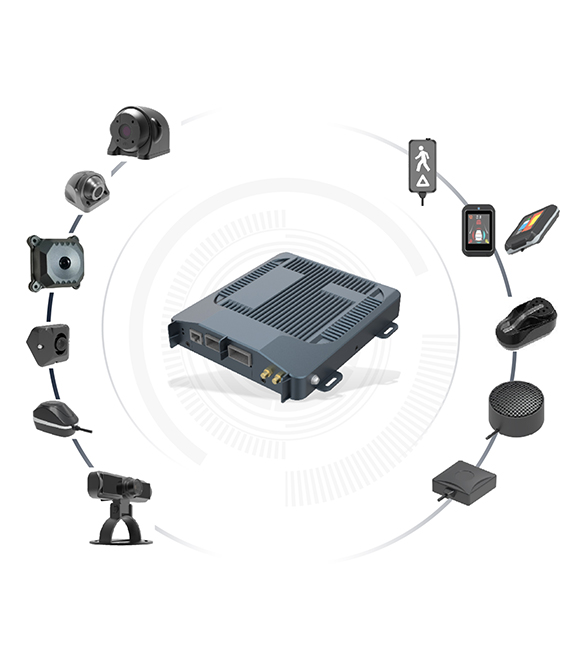

The Main Unit, also called the Host or the Box, is the ‘brain’ of the system.

The algorithms to detect objects, the strategies to decide when and how to take action to avoid a risk, the codes to manipulate the vehicle, and other software are all in the Main Unit. The cameras, sensors, and peripherals are to be connected to the Host.

Most cameras and peripherals are compatible with all models of Main Units, meaning they can work with all models of Main Units. However, some cameras and peripherals are particularly developed for certain Main Units and cannot work with others. To learn more, please check the ‘Compatibility Table’ below.

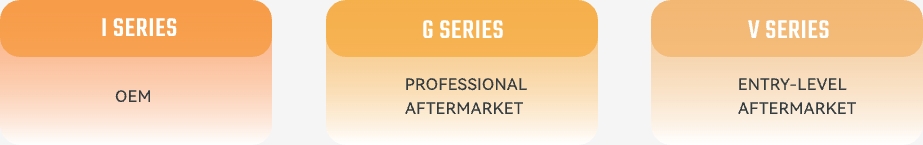

Vis Has Three Series Of Main Units:The I Series,The G Series,And The V Series.The Three Product Families Are At Different Industrial Grades,Thus For Different Markets.The Table Below Depicts The Differences

FUNCTION LIST OF MAIN UNITS

I SERIES

The I series Standard Products are highly customized Automotive Grade systems. For the OEM fitting market, the I series meet strict EMC/EMI and environmental requirements, with a wider range of working temperature.

AEC-Q100 grade chipset
OEM standards complied
R151, R158, R159 complied
ISO 13766 complied
ISO 16001 complied
ECE REG10 and Emark complied

CE complied
Independent Power Management for interior modules
Quick start
Automotive Standards of Software Development
White-box tests
Water-Proof

G SERIES

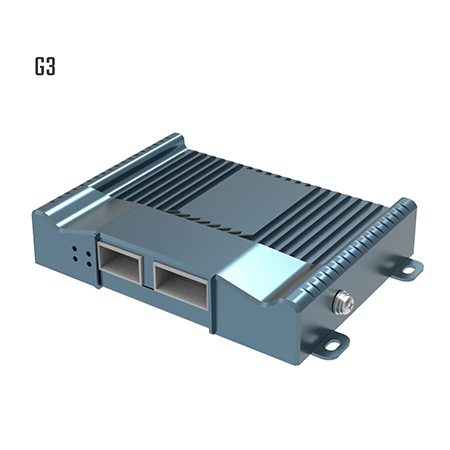

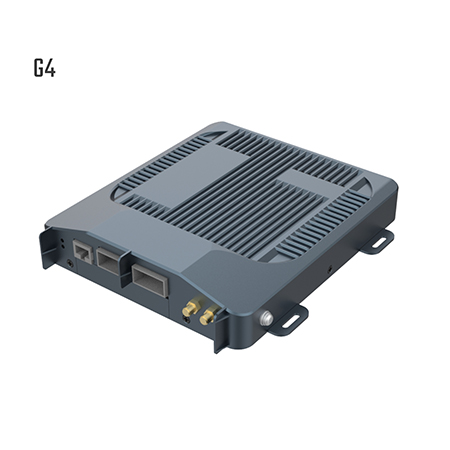

The G Series is for the professional after market. The G System reach an excellent balance between performance and cost. The G Series has two models: G4 and G3. Without or with only slight changes to the hardware, the G series can adopt various detection algorithms as sub-models to adapt to different functions.

Host + 2 camera
Working Voltage: Dc +9~+32V
Protection Voltage: lower than 9V
Quiescent Current: <=100uA
Working Current: <=1200mA@12VDC or 700mA@24VDC
Outer Size: 145.0 X107.0 X28.0 mm-20~+75°C
Operating Temperature: -40~125°C

Host + 4 camera
Working Voltage: DC +9 ~+32V
Protection Voltage: lower than 9V
Quiescent Current: <=100uA
Working Current: <=1800mA@12V
Outer Size: 217.00X205.50 X41.00 mm
Operating Temperature: -20~+75°C
Storage Temperature: -40~125°C

FUNCTION LIST OF MAIN UNITS

V SERIES

Entry-Level Aftermarket Solution

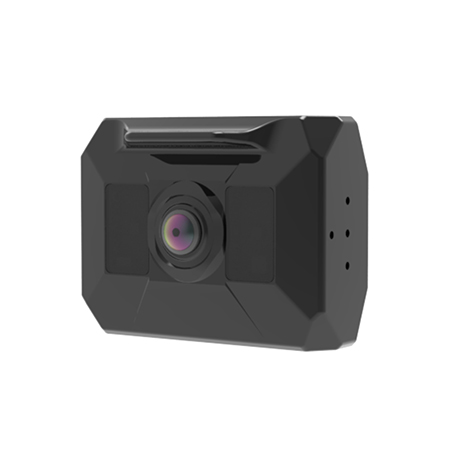

The V6 system is a compact, edge-computing device with an integrated camera, chips, and circuits housed within a single enclosure, simplifying installation. Although the V6 features a narrower operating temperature range compared to the G and I Series, which slightly impacts its detection capabilities, it remains an optimal choice for cost-effective, DIY installations.

Supporting up to four units, the V6 can establish a basic multi-camera network. In comparison, the G and I Series support more complex configurations, including additional sensors, peripherals, Over-the-Air (OTA) updates, and remote vehicle control.

With its competitive cost and performance, the V6 offers exceptional value in the entry-level aftermarket segment.

EDGECOMPUTING(host+cameraintegrated in same case)
Working Voltage: Dc +9 ~+32V
Protection Voltage: lower than 9V
Quiescent Current: <=100uA
Working Current: <=500mA@12VDC or400mA@24VD
Outer Size: 93.0 x 53.5 X72.0 mm
Operating Temperature: -20~+70*C-40~125°C

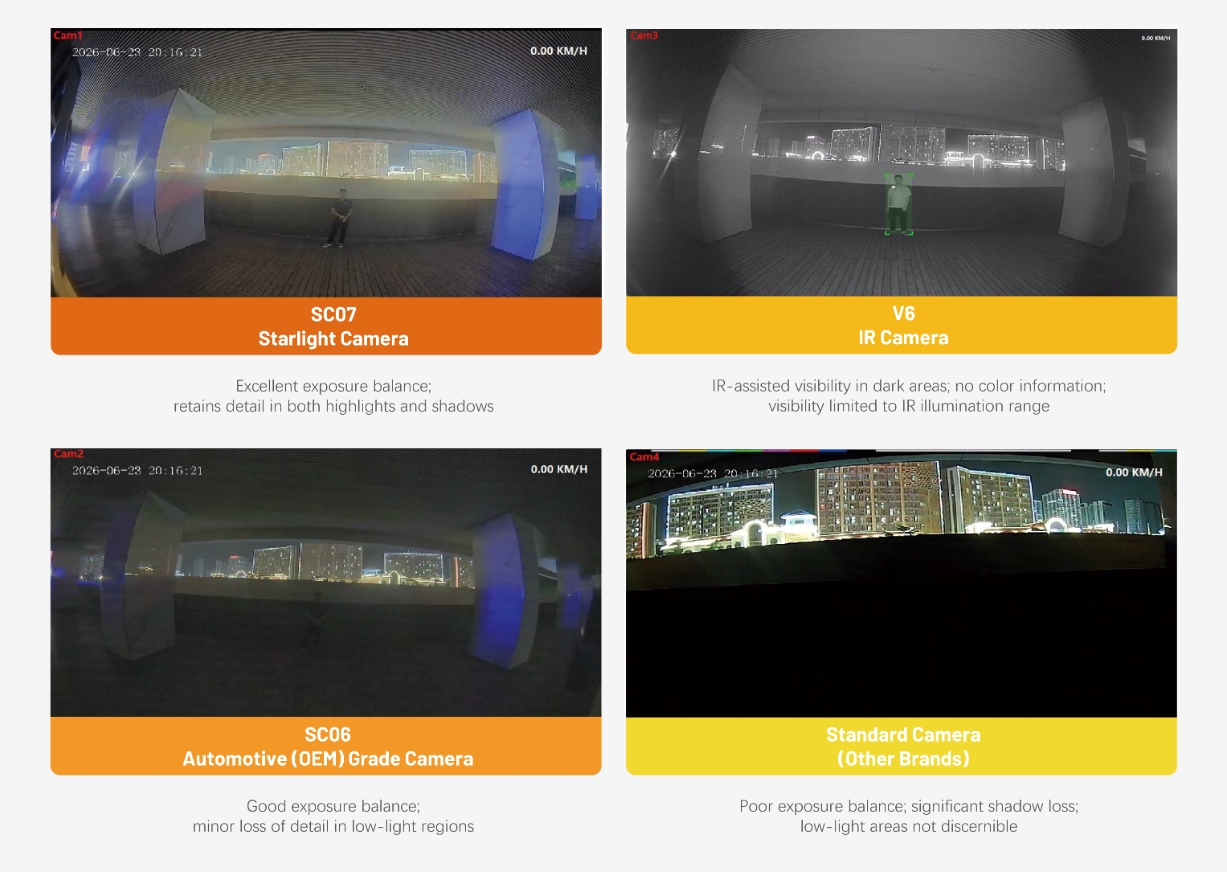

CAMERA

SC01

Smaller in size. Angle universally adjustable. With normal lens.1080P, 5Lux visible, 1Lux detectable

SC02

Larger in size. Ultra-solid. Angle universally adjustable. With normal lens.1080P, 5Lux visible, 1Lux detectable

SC03

Cubic shaped. Angle NoT adjustable. ONLY for OEM fitting. wideoperating temperature range. Ultra-solid lens which passes steel spheredropping tests.1080P,5Lux visible, 1Lux detectable

SC04

Top-down Bird -Eye-View. Angle adjustable.1080P, 5Lux visible, 1Lux detectable

SC04

Top-down Bird -Eye-View. Angle adjustable.1080P, 5Lux visible, 1Lux detectable

FCO1

Forward camera. Angle adjustable. For ADAS.1080P.5Lux visible. 1lux detectable

DSMCO1

DSM camera. Angle adjustable. With infrared LED. lEC62471 certificated.

FUNCTION LIST OF MAIN UNITS

PERIPHERAL

Peripherals are small optional devices connected with the Main Unit to provide additional function such as better GPS signal, audio and visual notice to the driver, or even additional sensor to detect the movement of a excavator. Some peripherals are water-proof while the others are not.

L2

Basic model display to be installed on the A pillar or dashboard. Human icon displayed.

L4

Enhanced LCE display, with brackets. To be installed on the A pillar or dashboard. Graphics displayed. IP65.
